How Wear Resistant Ceramic Pipes Cut Industrial Pipe Wear
Industrial pipes wear fast when they carry abrasive materials. Sand, ash, coal, clinker, minerals, and other hard particles can strike the inner wall during transport.
Normal steel pipes can thin over time. Elbows and bends often wear even faster because the flow turns in those areas.
A wear resistant ceramic pipe adds a hard ceramic layer to the inside wall. That layer helps protect the pipe from heavy wear. Ceramic-lined pipes are used in mining, cement, power generation, and material processing.
Why Industrial Pipes Wear Out
Pipe wear has several causes.
Abrasive particles are one of the main causes. Hard particles can slide along the pipe wall. They can also hit the wall at high speed.
This leads to two common types of wear:
Sliding wear
Impact and erosion
Bends and elbows often wear faster than straight runs. The material changes direction inside the elbow, which raises contact with the inner wall.
Moist materials can also wear pipes. Slurry transport, for example, exposes pipes to both solid particles and liquid flow.
When wear becomes serious, the pipe wall gets thinner. That can cause leaks, repairs, and unplanned shutdowns. A ceramic-lined pipe is often used where this wear is a major problem.
How Wear Resistant Ceramic Tubes Protect Pipe Surfaces

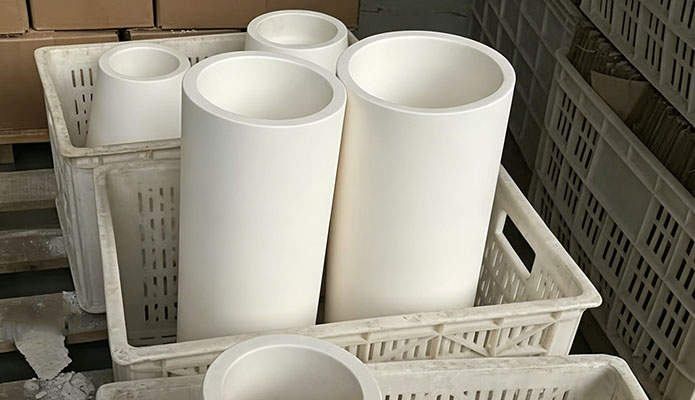

A wear resistant ceramic tube uses ceramic on the surface that meets the moving material.
Alumina is a common choice for wear protection. It has high hardness and strong resistance to abrasive wear. Silicon carbide is also used in demanding jobs.
The outer pipe gives the main mechanical support. The ceramic layer protects the inner surface.
This gives the pipe two useful roles:
The outer pipe supports the structure.
The ceramic layer protects against wear.
The ceramic surface can also give a smooth contact area for many material-handling jobs. The result depends on the ceramic type, lining design, material flow, and installation method.
For this reason, a wear resistant ceramic tube can be useful where a normal metal pipe wears too fast.
Wear Resistant Ceramic Pipe for Abrasive Materials
A wear resistant ceramic pipe is often used to move abrasive materials.
Typical materials include:
Coal
Sand
Quartz
Ash
Clinker
Mineral powder
Slurry
Other abrasive particles
These materials can cause fast wear when they move through a pipe at high speed.
The problem is often worse at elbows, tees, reducers, and other flow changes.
Ceramic-lined pipe can be used in these high-wear areas. Some suppliers also offer lined straight pipes, elbows, tees, reducers, and other fittings.

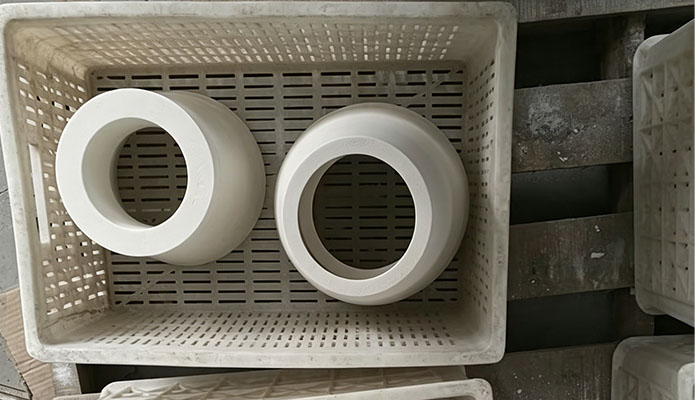

The lining method can vary too. Ceramic sleeves, ceramic tiles, rings, and other shapes can fit different pipe designs.
The best design depends on pipe size, material, flow condition, and wear area.
How Ceramic Tile Lined Pipe Helps Protect Pipelines
A ceramic tile lined pipe uses ceramic pieces inside the pipe. The tiles form a shield between the abrasive material and the steel pipe.
This design is useful when some areas need extra wear protection.
For example, a pipe elbow may wear more than a straight pipe. Ceramic tiles can be placed to cover the high-wear area.
The tile shape and layout can match the pipe geometry. That matters for elbows, tees, reducers, and other special shapes.
A ceramic tile lined pipe can also be used for custom pipe sections. The design should keep the ceramic lining secure during operation.
The bonding method is also important. Different projects may use different fixing or bonding methods. The choice depends on temperature, impact, pipe design, and operating conditions.
Common Applications of Wear Resistant Ceramic Pipes
Wear resistant ceramic pipes are used in many industries that move abrasive materials.
Mining
Mining plants often move ore, minerals, and slurry through pipes. These materials can cause strong abrasion.
Ceramic-lined pipes can protect parts that face constant wear.
Cement
Cement plants handle raw materials, clinker, cement powder, and other abrasive materials.
Pipes used for powder and solid transport can face heavy wear. Ceramic lining can help in these high-wear sections.
Power Generation
Power plants may transport coal, ash, and other abrasive materials.
Pipe bends and discharge areas can face strong erosion. Ceramic lining can help protect these areas.
Coal and Material Handling
Coal and other bulk materials can damage normal pipe surfaces during continuous transport.
A wear resistant ceramic pipe can provide a hard inner surface for these jobs.
How Ceramic Lining Can Reduce Maintenance Work
Pipe wear often creates maintenance work.
A worn pipe may need inspection, repair, or replacement. If the pipe is hard to reach, even a small wear problem can affect production.
Ceramic lining protects the inner pipe surface. That can help reduce wear in suitable applications.
Still, ceramic lining is not right for every pipe. Impact level, particle size, flow speed, temperature, and pipe shape all matter.
The lining must also be installed correctly. Poor bonding, wrong thickness, or damage during installation can reduce performance.
Good design starts with the real operating conditions.
Why Wear Resistant Ceramic Pipes Matter in Industrial Applications
Pipe wear is common when abrasive materials move every day.
A wear resistant ceramic tube can protect the inner pipe surface. A wear resistant ceramic pipe can be used in straight sections and high-wear areas. A ceramic tile lined pipe can also protect elbows and other special pipe shapes.
The main goal is simple: protect the pipe where wear happens most.
For mining, cement, power generation, coal handling, and other abrasivejobs, ceramic-lined pipe can be a practicalwaytoreducewear and maintenance needs. The final design should always match the material, flow conditions, temperature, pipe shape, and installation requirements.
