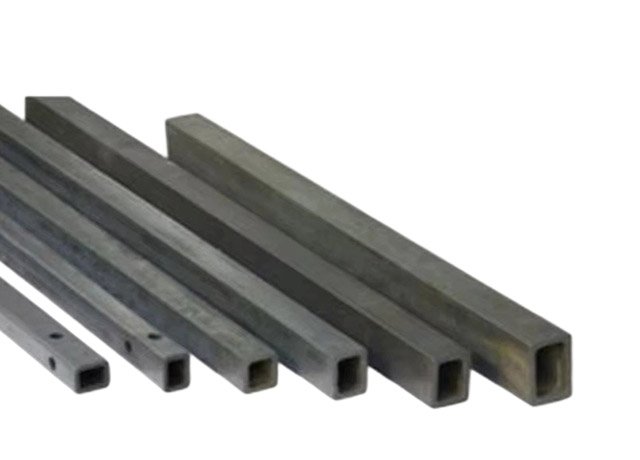

Kiln Beams
LAR’s Kiln beams are structural refractory components used in industrial kiln systems. These beams support kiln furniture and carry heavy loads during high-temperature operations.
Manufacturers produce Kiln Furniture beams using materials such as silicon carbide. Silicon carbide kiln beams offer high mechanical strength and excellent thermal stability. These properties allow kiln beams to perform reliably in demanding firing environments.
LAR’s Kiln beams play a key role in maintaining kiln structure and load distribution. Many kiln systems use silicon carbide kiln beams to improve efficiency and extend service life.
Product Overview

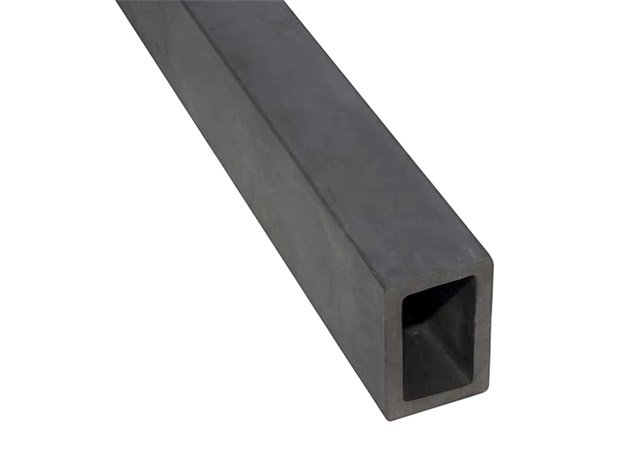

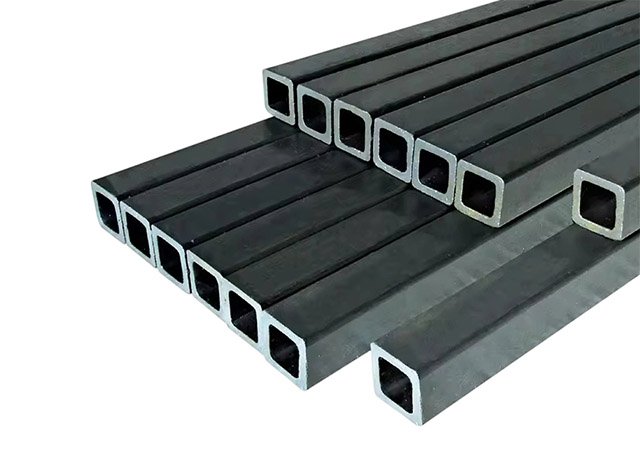

Silicon carbide kiln beams are high-performance refractory support components designed for heavy-load applications in high-temperature kiln systems. These kiln beams provide strong structural support for kiln shelves and ceramic products while maintaining excellent stability during continuous firing operations. Silicon carbide material offers high mechanical strength, superior thermal conductivity, low thermal expansion, and outstanding thermal shock resistance.
Kiln furniture beams are widely used in tunnel kilns, roller kilns, and industrial ceramic firing systems for applications such as tableware ceramics, sanitary ceramics, electronic ceramics, and advanced ceramic products. The strong load-bearing capability of kiln beams helps maintain stable kiln structures and reduces deformation during long-term high-temperature service.
LAR manufactures silicon carbide kiln beams with precise dimensions and consistent quality to meet different kiln designs and operating conditions. These kiln furniture beams can be customized according to beam length, loading requirements, firing temperature, and customer specifications.
High-quality kiln beams improve kiln efficiency by supporting stable product stacking and optimizing firing performance. LAR provides reliable silicon carbide kiln furniture solutions with excellent durability, helping ceramic manufacturers reduce maintenance costs and achieve efficient high-temperature production.
Key Features
1. High Load-Bearing Capacity
Kiln beams support heavy kiln furniture and products. The structure maintains stability under continuous high load.
2. Excellent High-Temperature Performance
Silicon carbide kiln beams operate at temperatures up to 1400–1500°C. The material resists deformation during long firing cycles.
3. Good Thermal Shock Resistance
The material withstands rapid temperature changes. Kiln beams reduce the risk of cracking during heating and cooling.
4. High Thermal Conductivity
Silicon carbide transfers heat efficiently. This feature helps maintain uniform temperature distribution in the kiln.
5. Long Service Life
Kiln Furniture beams resist oxidation and wear. Users benefit from reduced maintenance and longer replacement intervals.

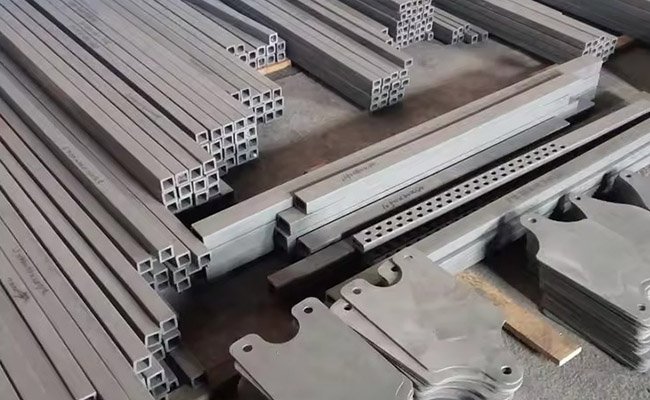

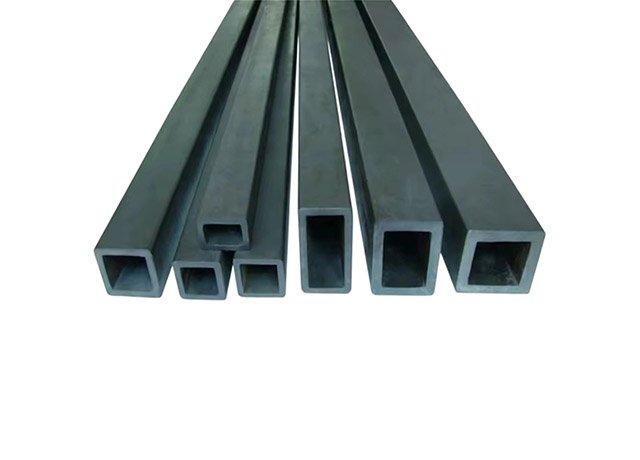

Typical Product Types
Kiln beams are available in different configurations:
· Solid silicon carbide kiln beams

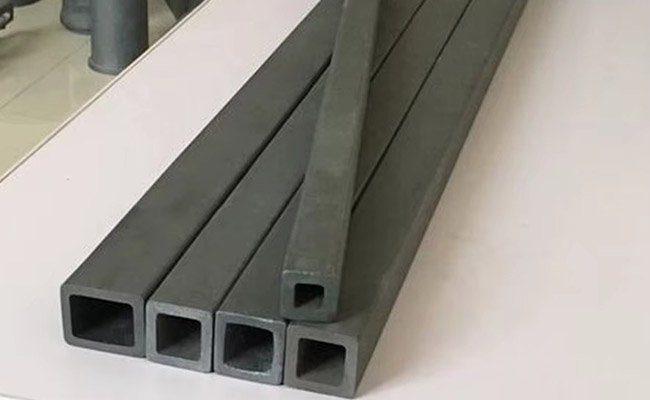

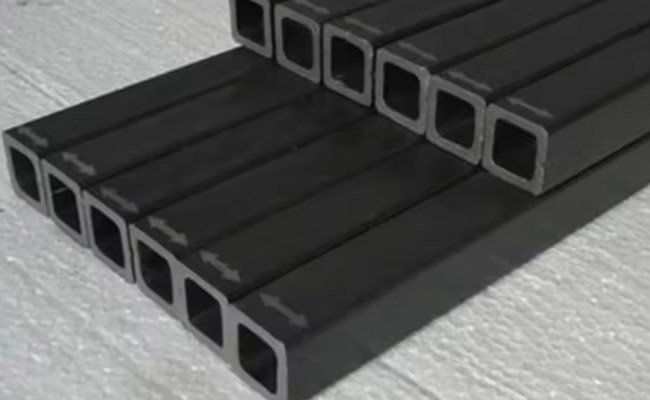

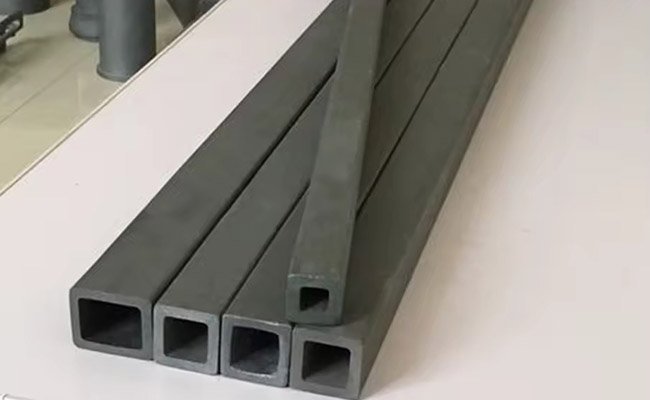

· Hollow beams for reduced weight
· Reaction bonded SiC beams
· Recrystallized SiC beams

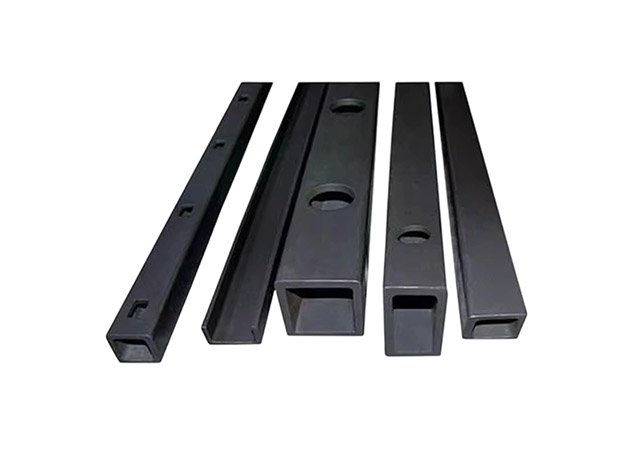

· Customized kiln beams for specific kiln structures
Manufacturers design kiln beams based on load requirements and kiln layout.
Technical Characteristics
Property | Typical Value |
Maximum Service Temperature | 1400–1500°C |
Material | Silicon Carbide (SiC) |
Bulk Density | 2.6–3.0 g/cm³ |
Apparent Porosity | 10–18% |
Cold Crushing Strength | ≥ 180–300 MPa |
Thermal Conductivity | High |
Thermal Expansion (1000°C) | Low |
These values represent typical industry ranges. Actual performance depends on material grade and manufacturing process.
Applications
Kiln beams are widely used in high-temperature industrial kilns:
· Ceramic tile production
· Sanitary ware and tableware manufacturing
· Technical ceramics production
· Heavy-load industrial kiln systems
Silicon carbide kiln beams are especially suitable for applications that require high strength and long-term stability.
![]()
![]()
![]()
Advantages Compared To Others
Material | Advantages | Application |
Silicon Carbide Kiln Beams | High strength, high conductivity, long life | Heavy-load kilns |
Mullite Beams | Good thermal stability | Medium-load applications |
Alumina Beams | High refractoriness | Specialized applications |
Silicon carbide kiln beams provide superior performance in demanding kiln environments. Many users select these beams to improve operational efficiency.
Customization & Manufacturing
Manufacturers provide customized kiln beams based on project requirements. Engineers design products according to:
· Kiln structure and operating temperature
· Load conditions and support span
· Required dimensions and beam shape
· Specific industrial applications
Manufacturers apply strict quality control during production. Kiln Furniture beams deliver reliable performance and long service life in industrial kilns.
